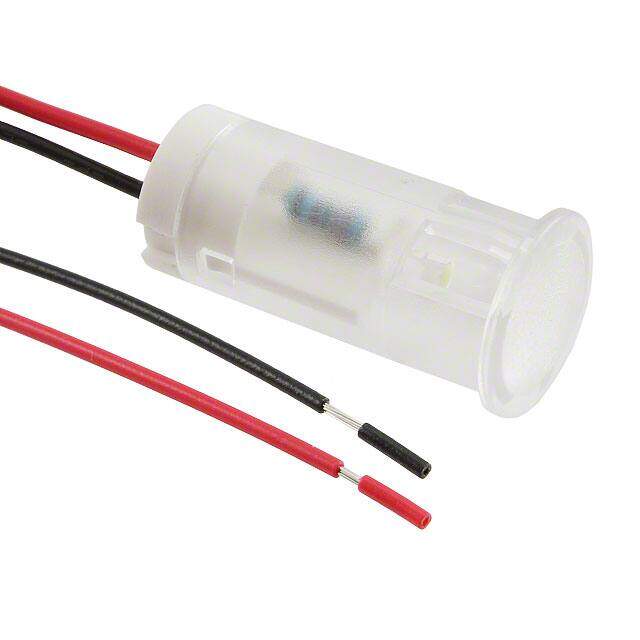

QS123XXW24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED Indicator;12mm;Plastic;Snap-In;Panel Mount;Fixed;White;24VDC;Wire
PDF
/
Inventory: 7222
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 28.5mm
Technical
Lamp Color White
Lens Transparency Diffused
Millicandela Rating 1200mcd
Luminous Intensity 1.2 cd
Forward Voltage 3.3V
Lens Size 14.00mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 30°
Panel Cutout Dimensions 0.47 (11.94mm)
Termination Style Solder Lug
Current Rating 20mA
HTS Code 8541.40.20.00
Voltage - Rated 24V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Type LED
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series QS
Physical
Panel Cutout Shape Round
Material PC, Polycarbonate
Mount Snap in
Supply Chain
Factory Lead Time 15 Weeks
