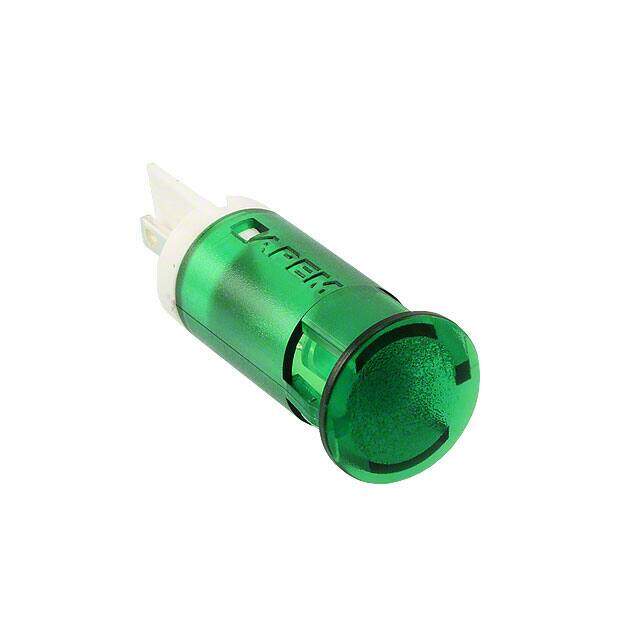

QS121XXG24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED Indicator;12mm;Plastic;Snap-In;Panel Mount;Fixed;Green;24VDC;Solder
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
≥10 USD $4.12456
≥100 USD $3.378496
≥500 USD $2.848155
≥1000 USD $2.612447
≥3000 USD $2.504418
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Snap in
Material PC, Polycarbonate
Panel Cutout Shape Round
Technical
Series QS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type LED
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated 24V
HTS Code 8541.40.20.00
Current Rating 20mA
Termination Style Solder Lug
Panel Cutout Dimensions 0.47 (11.94mm)
Viewing Angle 30°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 14.00mm Dia
Forward Voltage 2.2V
Luminous Intensity 20 mcd
Lens Transparency Diffused
Lamp Color Green
Dimensions
Length 38.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
