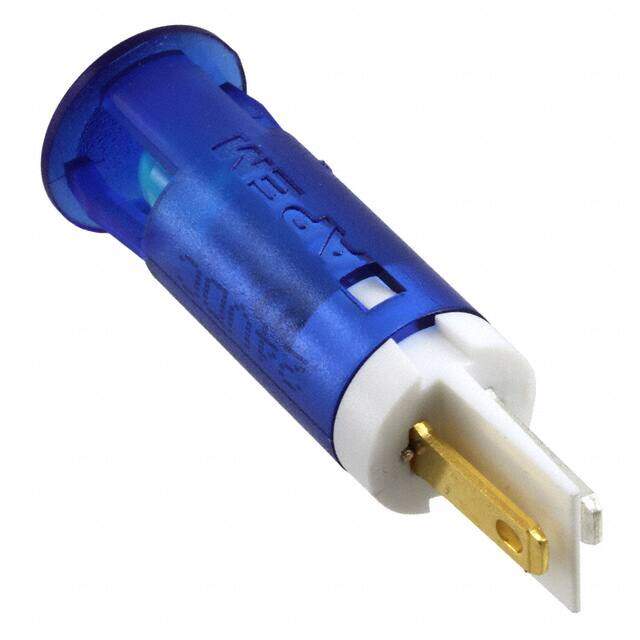

QS101XXB24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED Indicator;10mm;Plastic;Snap-In;Panel Mount;Fixed;Blue;24VDC;Solder
PDF
/
Buying Options
Total Price: USD $5.41
Unit Price: USD $5.411481
≥1 USD $5.411481
≥10 USD $5.105178
≥100 USD $4.816201
≥500 USD $4.543585
≥1000 USD $4.286399
Inventory: 4272
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 28.25mm
Technical
Lamp Color Blue
Lens Transparency Diffused
Luminous Intensity 800 mcd
Forward Voltage 3.3V
Lens Size 12.00mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 30°
Panel Cutout Dimensions 0.39 (9.91mm)
Termination Style Solder Lug
Current Rating 20mA
HTS Code 8541.40.20.00
Voltage - Rated 24V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Type LED
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series QS
Physical
Panel Cutout Shape Round
Material PC, Polycarbonate
Mount Snap in
Supply Chain
Factory Lead Time 15 Weeks
