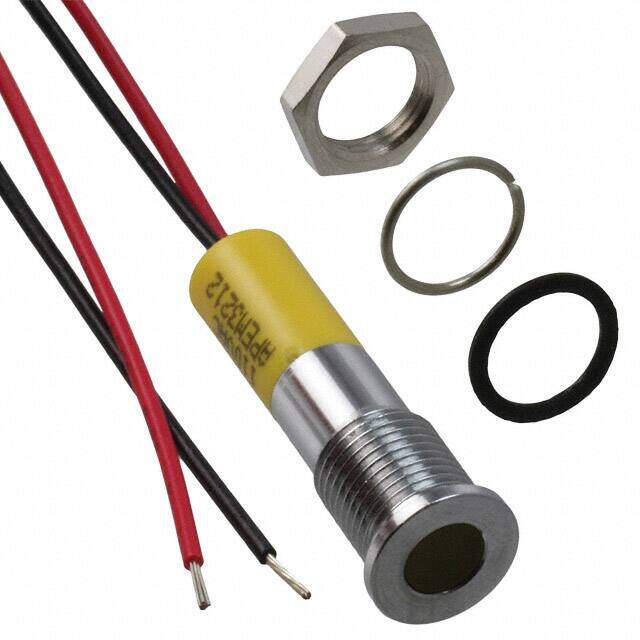

Q8F3CXXHY110E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PMI FLUSH 110VAC YELLOW
PDF
/
Inventory: 5826
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Yellow
Overall Height 1mm
Lens Transparency Diffused
Millicandela Rating 250mcd
Luminous Intensity 250.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Flat Top
Viewing Angle 100°
Current 6mA
Voltage 110V
Configuration SINGLE
Panel Cutout Dimensions 0.31 (7.87mm)
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 7.87 (200.00mm)
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Q Series
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 15 Weeks
