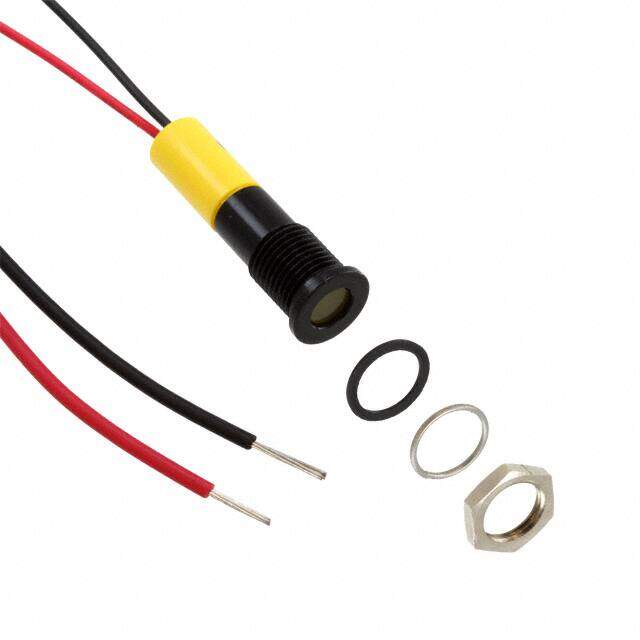

Q8F3BXXY24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PM INDICATOR FLUSH YELLOW
PDF
/
Inventory: 8694
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 27.6mm
Technical
Lamp Color Yellow
Overall Height 1mm
Lens Transparency Diffused
Millicandela Rating 6mcd
Luminous Intensity 6 mcd
Forward Voltage 24V
Lens Size 5mm T-1 3/4
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.31 (7.87mm)
Operating Supply Voltage 24V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Flush
Supply Chain
Factory Lead Time 13 Weeks
