Q8F3BXXR12E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

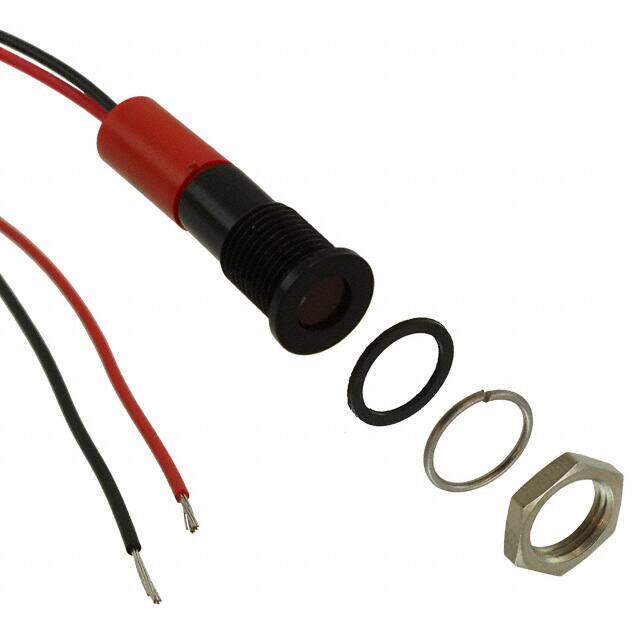

8mm flush black chr LED wires, red 12Vdc
PDF
/
Buying Options
Total Price: USD $15.61
Unit Price: USD $15.6112
≥1 USD $15.6112
≥10 USD $11.7744
≥100 USD $9.890496
≥500 USD $9.083096
≥1000 USD $8.578478
Inventory: 280
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 27.6mm
Technical
Lamp Color Red
Overall Height 1mm
Lens Transparency Diffused
Millicandela Rating 12mcd
Luminous Intensity 10 mcd
Forward Voltage 12V
Lens Size 5mm T-1 3/4
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.31 (7.87mm)
Operating Supply Voltage 12V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 12V
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Flush
Supply Chain
Factory Lead Time 13 Weeks
