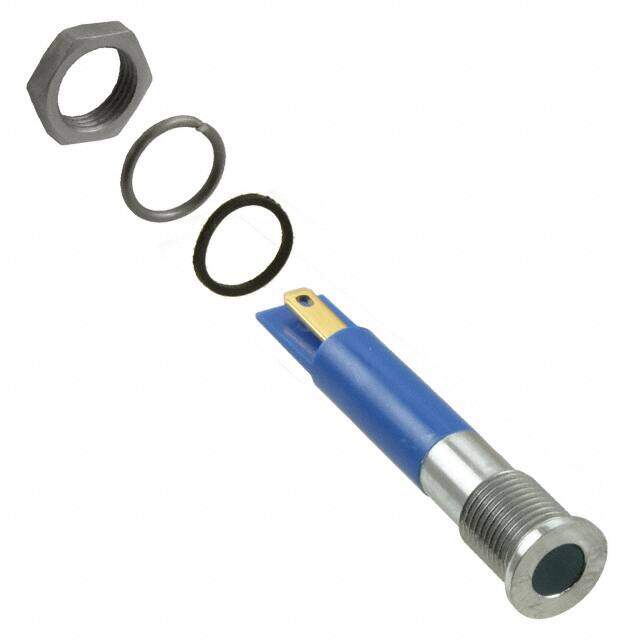

Q8F1CXXB24E
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 24V 8MM FLUSH BLUE
PDF
/
Buying Options
Total Price: USD $15.46
Unit Price: USD $15.460258
≥1 USD $15.460258
≥10 USD $14.585149
≥100 USD $13.759575
≥500 USD $12.980734
≥1000 USD $12.245971
Inventory: 6807
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case 200
Surface Mount NO
Mounting Feature PANEL MOUNT
Material Brass
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder
Type LED
Voltage - Rated 24V
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Solder Lug
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Operating Supply Voltage 24V
Panel Cutout Dimensions 0.31 (7.87mm)
Configuration SINGLE
Life (Hours) 100000 hours
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 5mm T-1 3/4
Forward Voltage 24V
Luminous Intensity 200 mcd
Lens Transparency Diffused
Overall Height 1mm
Lamp Color Blue
Dimensions
Length 44.85mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
