Q8F1BXXHG02E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

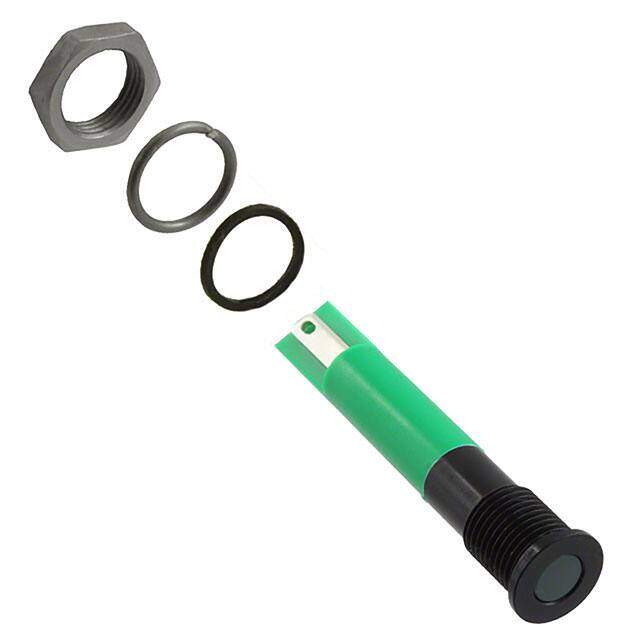

LED INDICATOR;8MM;Flush;Black Chrome;Hyper Green;No Resistor;2VDC;IP67
PDF
/
Buying Options
Total Price: USD $20.27
Unit Price: USD $20.2664
≥1 USD $20.2664
≥10 USD $15.289472
≥100 USD $12.843248
≥500 USD $11.794816
Inventory: 285
Minimum: 1
-
+
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
Technical
Lamp Color Green
Lens Transparency Diffused
Luminous Intensity 300 mcd
Lens Size 9.40mm Dia
Lens Style Round with Flat Top
Current 20mA
Life (Hours) 100000 hours
Voltage 2V
Panel Cutout Dimensions 0.32 (8.13mm)
Termination Style Quick Connect - 0.110 (2.8mm)
Ingress Protection IP67
Type LED
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Q Series
Physical
Panel Cutout Shape Round
Supply Chain
Factory Lead Time 13 Weeks
