Q8F1BXXHB02E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

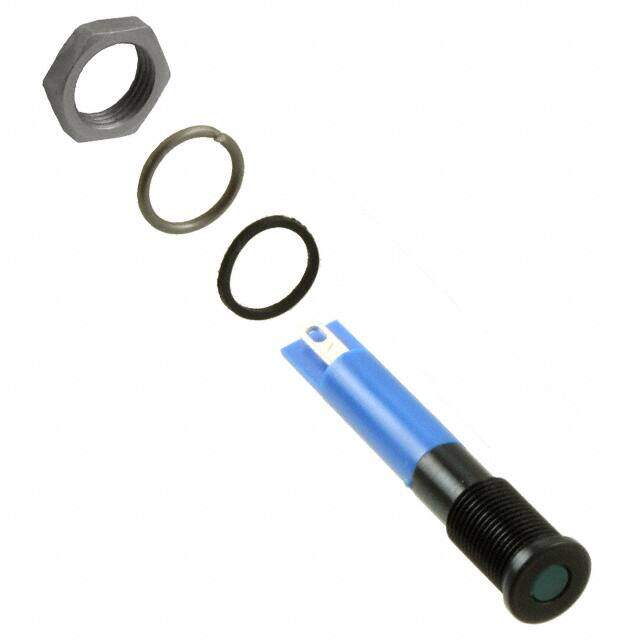

LED INDICATOR;8MM;Flush;Black Chrome;Hyper Blue;No Resistor;2VDC;IP67
PDF
/
Buying Options
Total Price: USD $20.27
Unit Price: USD $20.2664
≥1 USD $20.2664
≥10 USD $15.289472
≥100 USD $12.843248
≥500 USD $11.794816
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Panel Cutout Shape Round
Technical
Series Q Series
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type LED
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Panel Cutout Dimensions 0.32 (8.13mm)
Voltage 2V
Life (Hours) 100000 hours
Current 20mA
Lens Style Round with Flat Top
Lens Size 9.40mm Dia
Luminous Intensity 800 mcd
Lens Transparency Diffused
Lamp Color Blue
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
