Q6P3CXXG24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

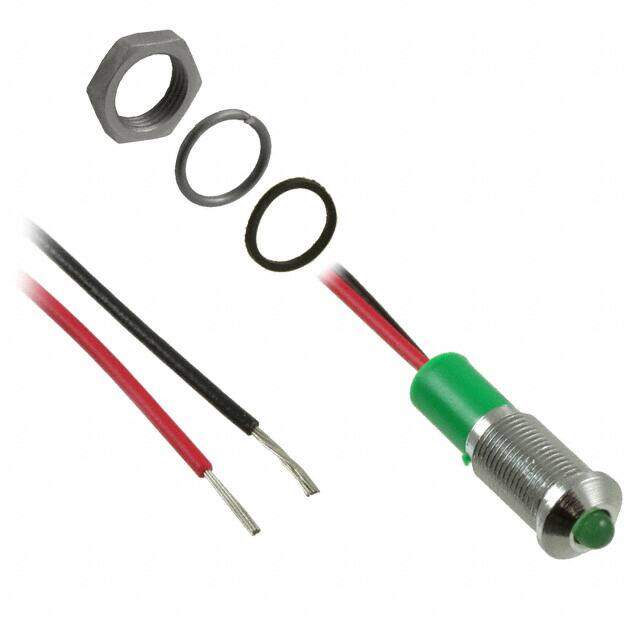

LED PANEL MOUNT INDICATOR GRN
PDF
/
Buying Options
Total Price: USD $15.22
Unit Price: USD $15.2152
≥1 USD $15.2152
≥10 USD $11.47872
≥100 USD $9.642248
≥500 USD $8.855123
≥1000 USD $8.363168
Inventory: 551
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Dimensions
Length 17.1mm
Technical
Lamp Color Green
Overall Height 3.5mm
Lens Transparency Diffused
Millicandela Rating 40mcd
Luminous Intensity 50 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Forward Current 20mA
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.24 (6.10mm)
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Terminal Pitch 2.5mm
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Panel
Supply Chain
Factory Lead Time 13 Weeks
