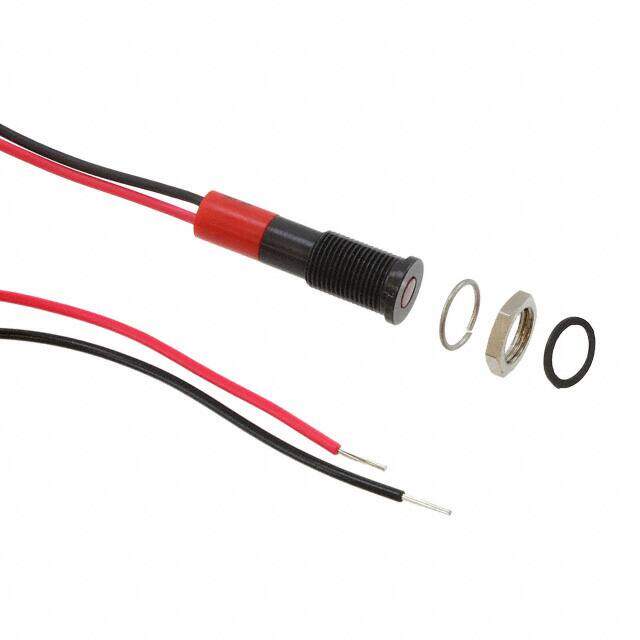

Q6F3BXXR24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PM INDICATOR FLUSH RED
PDF
/
Buying Options
Total Price: USD $15.22
Unit Price: USD $15.2152
≥1 USD $15.2152
≥10 USD $11.47872
≥100 USD $9.642248
≥500 USD $8.855123
≥1000 USD $8.363168
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Panel
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire Leads
Type LED
Voltage - Rated 24V
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Wire Leads - 7.87 (200.00mm)
Panel Cutout Dimensions 0.24 (6.10mm)
Configuration SINGLE
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 3mm T-1
Forward Voltage 24V
Luminous Intensity 10 mcd
Millicandela Rating 10mcd
Lens Transparency Diffused
Lamp Color Red
Dimensions
Length 21mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
