Q6F1BXXB24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

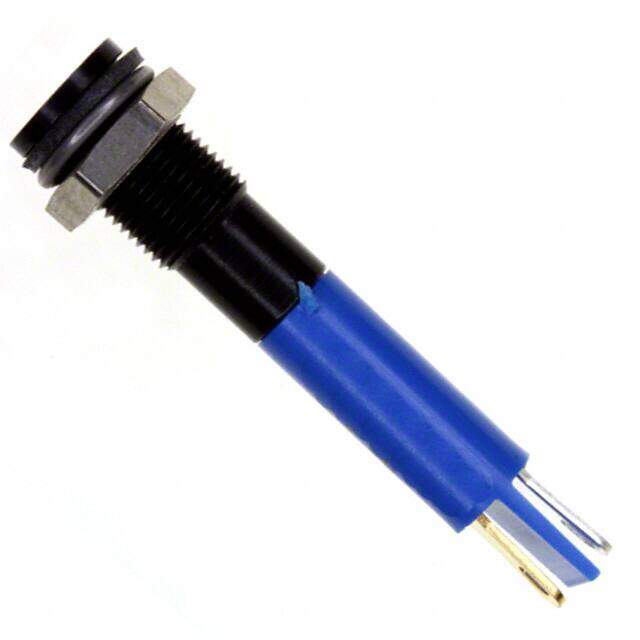

INDICATOR 24V 6MM FLUSH BLUE
PDF
/
Buying Options
Total Price: USD $14.83
Unit Price: USD $14.832727
≥1 USD $14.832727
≥10 USD $13.993137
≥100 USD $13.20108
≥500 USD $12.453838
≥1000 USD $11.748912
Inventory: 1262
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Dimensions
Length 27mm
Technical
Lamp Color Blue
Overall Height 1mm
Lens Transparency Diffused
Luminous Intensity 100 mcd
Forward Voltage 24V
Lens Size 3mm T-1
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 100°
Life (Hours) 100000 hours
Configuration SINGLE
Panel Cutout Dimensions 0.24 (6.10mm)
Operating Supply Voltage 24V
Termination Style Solder Lug
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type LED
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 13 Weeks
