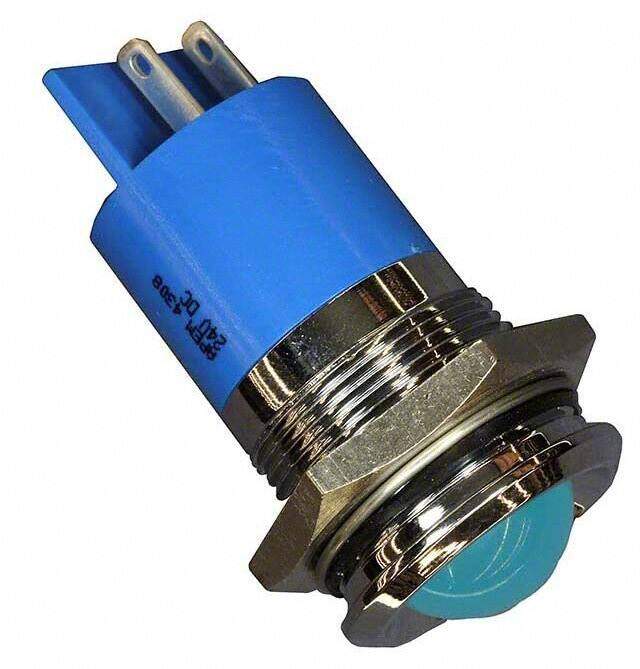

Q22P1CXXB24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 24V 22MM PROMINENT BLU
PDF
/
Inventory: 5877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Blue
Overall Height 6.5mm
Lens Transparency Diffused
Millicandela Rating 120mcd
Luminous Intensity 120 mcd
Forward Voltage 24V
Lens Size 18.00mm Dia
Lens Style Round with Domed Top
Forward Current 20mA
Viewing Angle 100°
Current 40mA
Configuration SINGLE
Panel Cutout Dimensions 0.87 (22.10mm)
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Quick Connect - 0.110 (2.8mm)
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Type LED
Termination Quick Connect
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 13 Weeks
