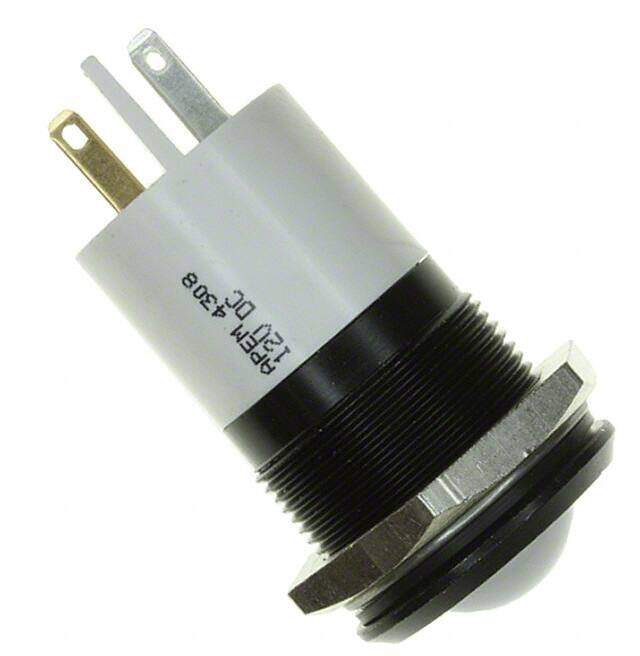

Q22P1BXXW12E
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 12V 22MM PROMINENT WHT
PDF
/
Inventory: 4199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case Metal
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
Termination Quick Connect
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.87 (22.10mm)
Configuration SINGLE
Life (Hours) 100000 hours
Current 40mA
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 18.00mm Dia
Forward Voltage 12V
Luminous Intensity 350 mcd
Lens Transparency Diffused
Overall Height 6.5mm
Lamp Color White
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
