Q22P1BXXR24E
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

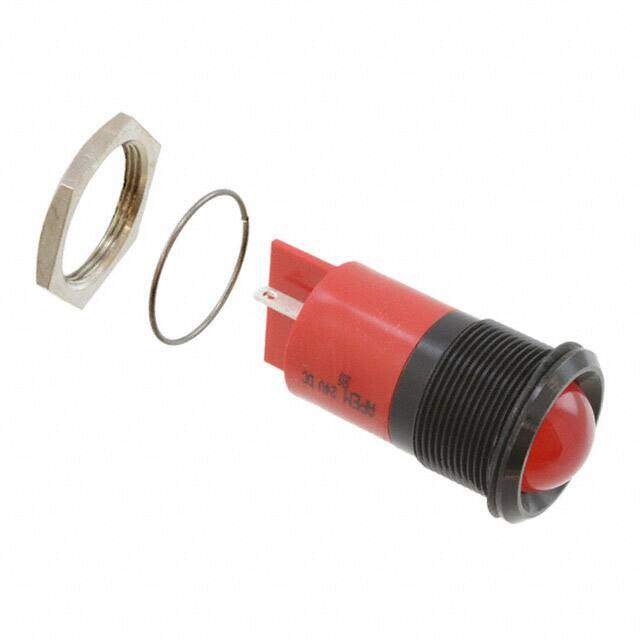

INDICATOR 24V 22MM PROMINENT RED
PDF
/
Buying Options
Total Price: USD $27.66
Unit Price: USD $27.65583
≥1 USD $27.65583
≥10 USD $26.090409
≥100 USD $24.613594
≥500 USD $23.220372
≥1000 USD $21.906014
Inventory: 2541
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case Metal
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
Termination Quick Connect
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.87 (22.10mm)
Configuration SINGLE
Life (Hours) 100000 hours
Current 40mA
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 18.00mm Dia
Forward Voltage 24V
Luminous Intensity 80 mcd
Lens Transparency Diffused
Overall Height 6.5mm
Lamp Color Red
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
