Q22F1CXXR110E
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

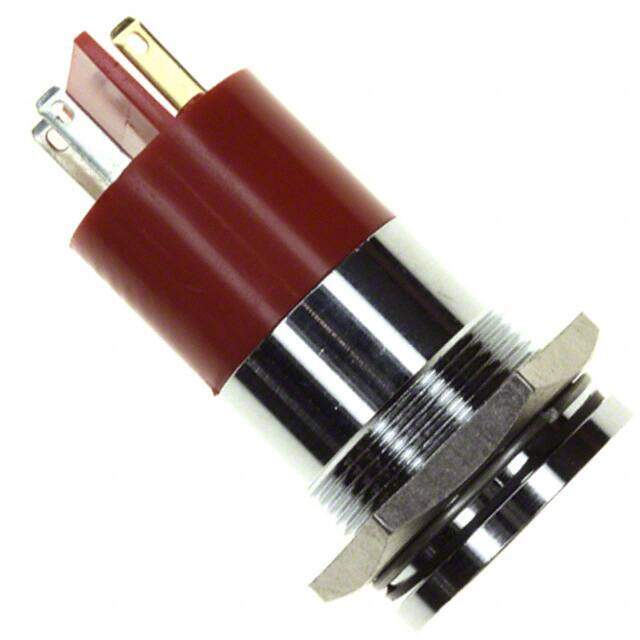

INDICATOR 110V 22MM FLUSH RED
PDF
/
Inventory: 2869
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case Metal
Panel Cutout Shape Round
Technical
Series Q Series
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type LED
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Panel Cutout Dimensions 0.87 (22.10mm)
Voltage 110V
Life (Hours) 100000 hours
Current 5mA
Viewing Angle 100°
Forward Current 6mA
Lens Style Round with Flat Top
Lens Size 18.00mm Dia
Forward Voltage 5.7V
Luminous Intensity 70 mcd
Lens Transparency Diffused
Lamp Color Red
Compliance
RoHS Status ROHS3 Compliant
Ratings AC
