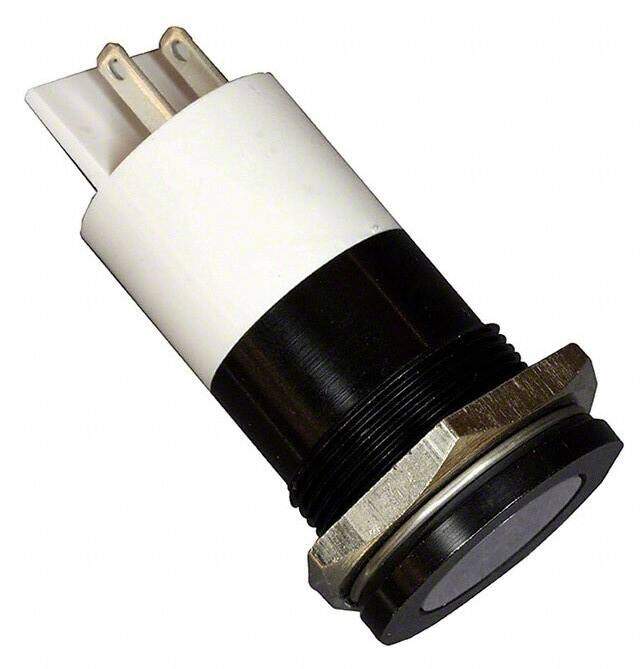

Q22F1BXXW12E
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 12V 22MM FLUSH WHITE
PDF
/
Inventory: 5613
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case Metal
Panel Cutout Shape Round
Technical
Series Q Series
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Type LED
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Panel Cutout Dimensions 0.87 (22.10mm)
Life (Hours) 100000 hours
Current 40mA
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 18.00mm Dia
Forward Voltage 12V
Luminous Intensity 120 mcd
Lens Transparency Diffused
Lamp Color White
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
