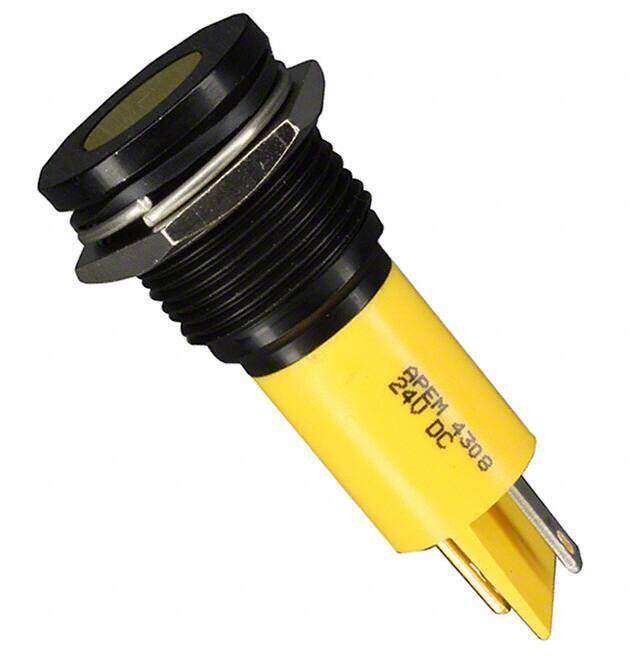

Q16F1BXXY24E
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 24V 16MM FLUSH YELLOW
PDF
/
Inventory: 4815
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Quick Connect
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Quick Connect - 0.110 (2.8mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.63 (16.00mm)
Configuration SINGLE
Voltage 24V
Life (Hours) 100000 hours
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 10.00mm Dia
Forward Voltage 24V
Luminous Intensity 4 mcd
Lens Transparency Diffused
Overall Height 2mm
Lamp Color Yellow
Pbfree Code yes
Series Q Series
Dimensions
Length 45.6mm
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
Physical
Panel Cutout Shape Round
Dielectric Material Chrome
Material Brass
Mounting Feature PANEL MOUNT
Surface Mount NO
Package / Case Metal
Supply Chain
Factory Lead Time 13 Weeks
