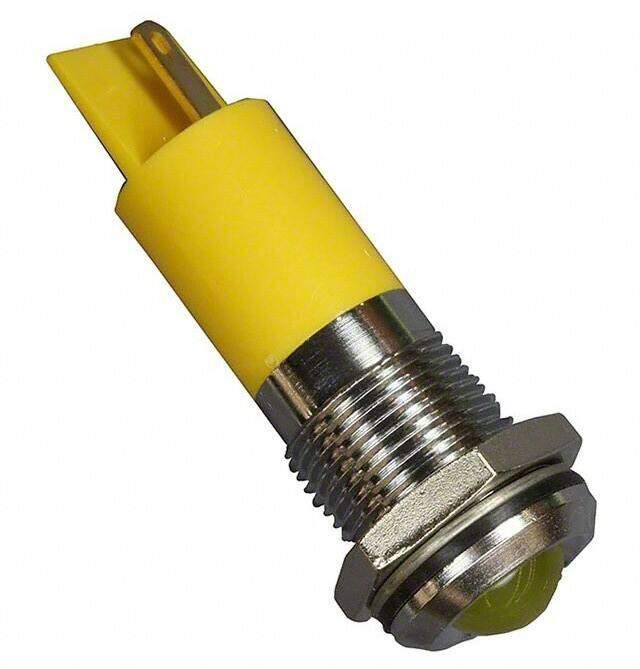

Q14P1CXXY110E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 110V 14MM PROM YELLOW
PDF
/
Inventory: 8944
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AC
RoHS Status ROHS3 Compliant
Dimensions
Length 61mm
Technical
Lamp Color Yellow
Number of LEDs 1
Overall Height 4.75mm
Reverse Voltage 5V
Lens Transparency Diffused
Luminous Intensity 50 mcd
Forward Voltage 2.1V
Lens Size 10.00mm Dia
Lens Style Round with Domed Top
Forward Current 6mA
Viewing Angle 100°
Life (Hours) 100000 hours
Configuration SINGLE
Panel Cutout Dimensions 0.55 (13.97mm)
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 6mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
Additional Feature UL RECOGNIZED
Voltage - Rated 110V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish NOT SPECIFIED
Type LED
Termination Quick Connect
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Number of Pins 2
Mount Panel
Supply Chain
Factory Lead Time 13 Weeks
