Q14F5AGXXHG220E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

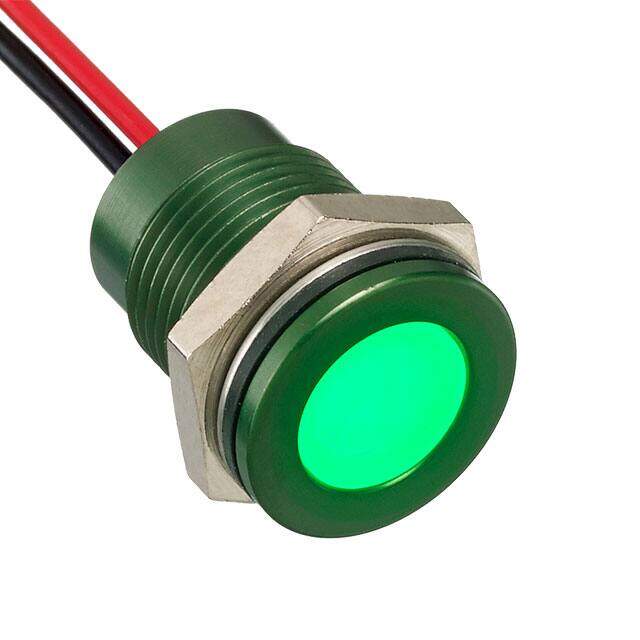

INDICATOR 220V 14MM FLUSH GREEN
PDF
/
Buying Options
Total Price: USD $50.8
Unit Price: USD $50.8024
≥1 USD $50.8024
≥10 USD $42.08688
≥100 USD $40.610416
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire Leads
Type LED
Additional Feature UL RECOGNIZED
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Wire Leads - 7.87 (200.00mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.55 (13.97mm)
Configuration SINGLE
Voltage 220V
Current 3mA
Lens Style Round with Flat Top
Lens Size 10.00mm Dia
Luminous Intensity 250 mcd
Lens Transparency Diffused
Overall Height 1.5mm
Lamp Color Green
Compliance
RoHS Status ROHS3 Compliant
Ratings AC
