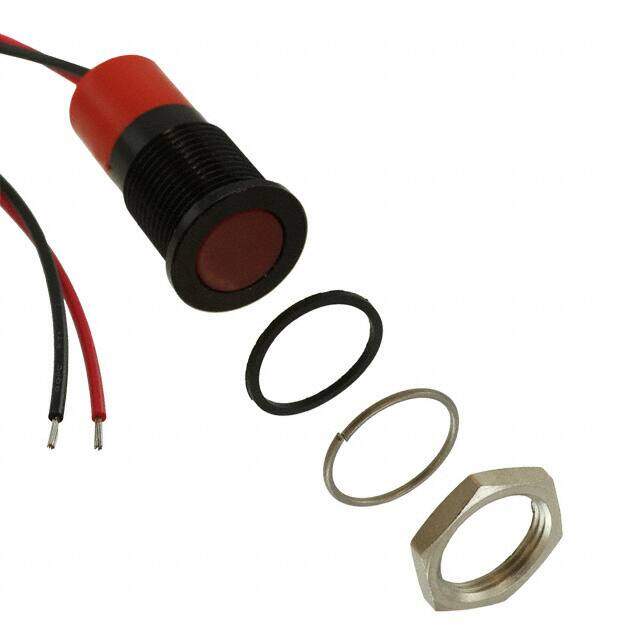

Q14F3BXXR24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PM INDICATOR FLUSH RED
PDF
/
Buying Options
Total Price: USD $19.65
Unit Price: USD $19.6504
≥1 USD $19.6504
≥10 USD $14.82272
≥100 USD $12.451296
≥500 USD $11.434861
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 30.6mm
Technical
Lamp Color Red
Overall Height 1.5mm
Lens Transparency Diffused
Millicandela Rating 10mcd
Luminous Intensity 10 mcd
Forward Voltage 24V
Lens Size 10.00mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.55 (13.97mm)
Operating Supply Voltage 24V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Terminal Finish NOT SPECIFIED
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Flush
Supply Chain
Factory Lead Time 13 Weeks
