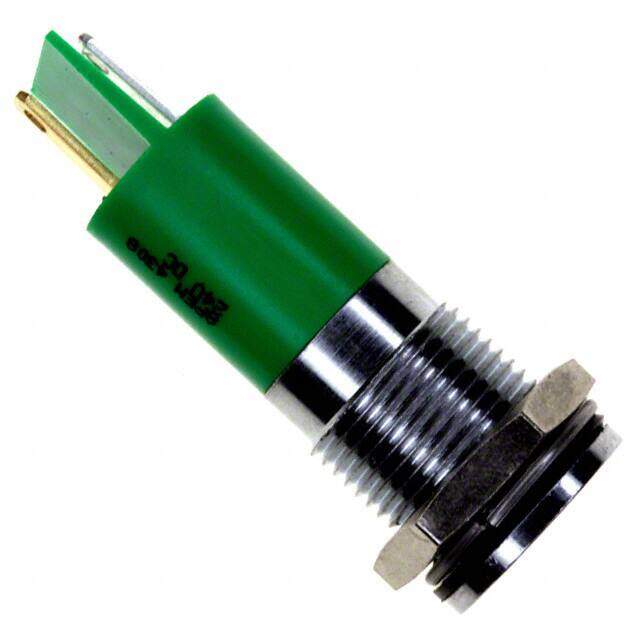

Q14F1CXXG24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 24V 14MM FLUSH GREEN
PDF
/
Buying Options
Total Price: USD $14.89
Unit Price: USD $14.8896
≥1 USD $14.8896
≥10 USD $11.229856
≥100 USD $9.43316
≥500 USD $8.663142
≥1000 USD $8.181853
Inventory: 41
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Dimensions
Length 35.6mm
Technical
Lamp Color Green
Number of LEDs 1
Reverse Voltage 5V
Lens Transparency Diffused
Luminous Intensity 5 mcd
Forward Voltage 2.2V
Lens Size 10.00mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 100°
Life (Hours) 100000 hours
Configuration SINGLE
Panel Cutout Dimensions 0.55 (13.97mm)
Operating Supply Voltage 24V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish NOT SPECIFIED
Type LED
Connector Type Lug, Solder
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Material Brass
Number of Pins 2
Mount Panel
Supply Chain
Factory Lead Time 13 Weeks
