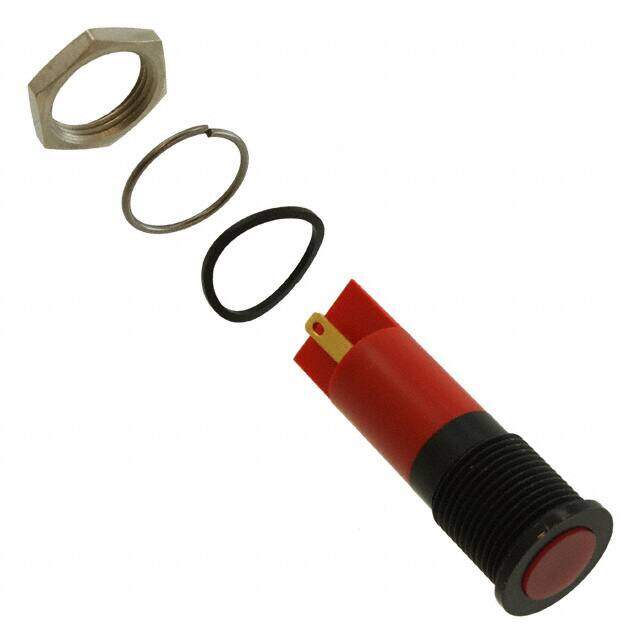

Q14F1BXXR24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 24V 14MM FLUSH RED
PDF
/
Inventory: 7257
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Quick Connect
Type LED
Terminal Finish NOT SPECIFIED
Voltage - Rated 24V
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Quick Connect - 0.110 (2.8mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.55 (13.97mm)
Configuration SINGLE
Life (Hours) 100000 hours
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 10.00mm Dia
Forward Voltage 24V
Luminous Intensity 10 mcd
Lens Transparency Diffused
Overall Height 1.5mm
Lamp Color Red
Dimensions
Length 35.6mm
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
