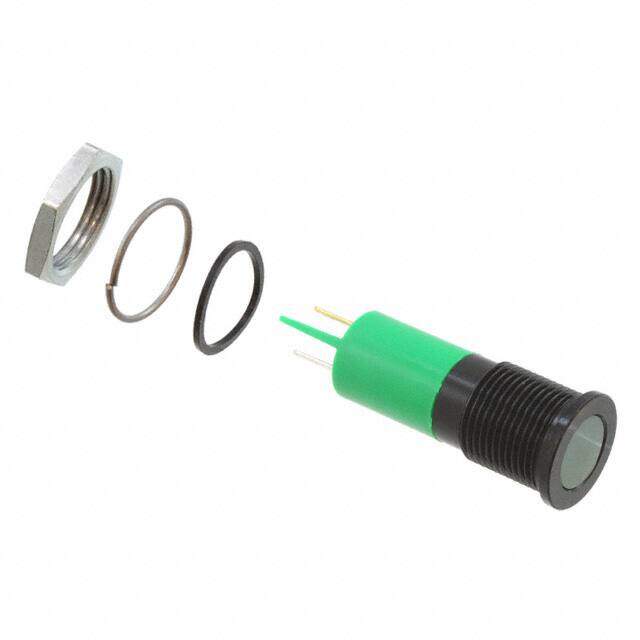

Q14F1BXXG12E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR 12V 14MM FLUSH GREEN
PDF
/
Buying Options
Total Price: USD $10.46
Unit Price: USD $10.4632
≥1 USD $10.4632
≥10 USD $7.941824
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder
Connector Type Lug, Solder
Type LED
Terminal Finish NOT SPECIFIED
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 12V
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Quick Connect - 0.110 (2.8mm)
Panel Cutout Dimensions 0.55 (13.97mm)
Configuration SINGLE
Life (Hours) 100000 hours
Viewing Angle 100°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 10.00mm Dia
Forward Voltage 12V
Luminous Intensity 5 mcd
Lens Transparency Diffused
Overall Height 1.5mm
Lamp Color Green
Dimensions
Length 35.6mm
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
