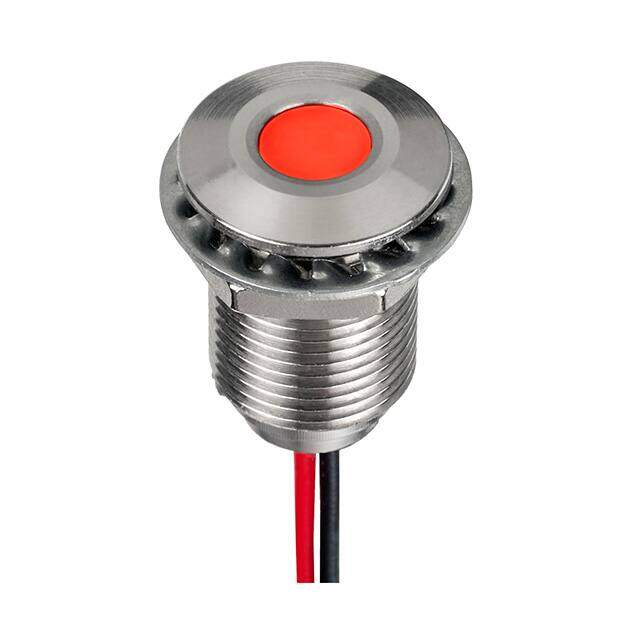

Q10F5SXXSR24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL INDICATOR RED 24V IP67
PDF
/
Buying Options
Total Price: USD $47.17
Unit Price: USD $47.168
≥1 USD $47.168
≥10 USD $36.85
≥100 USD $35.007192
Inventory: 166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series Q Series
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Wire Leads - 7.87 (200.00mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.39 (10.00mm)
Configuration SINGLE
Voltage 24V
Current 20mA
Viewing Angle 60°
Lens Style Round with Flat Top
Lens Size 5mm T-1 3/4
Luminous Intensity 1300.0 mcd
Millicandela Rating 8mcd
Overall Height 1.5mm
Lamp Color Red
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
