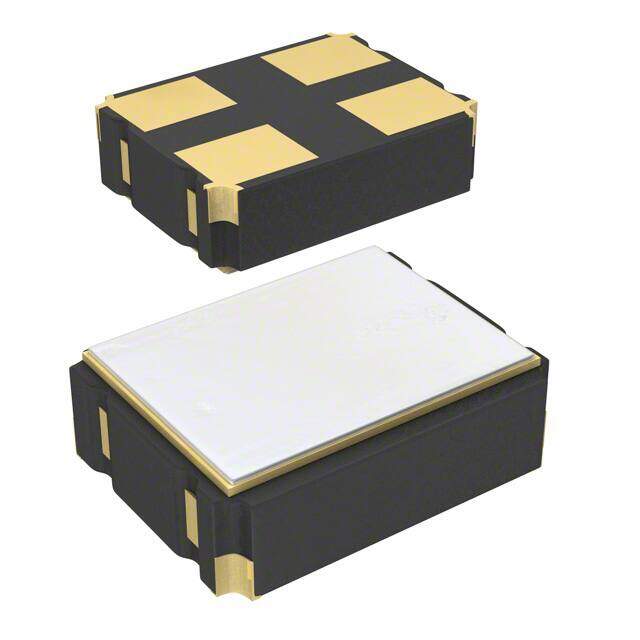

AU-12.288MBE-T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
CRYSTAL OSCILLATOR, CMOS, 12.288MHZ, SMD
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
≥10 USD $1.86648
≥100 USD $1.7776
≥500 USD $1.5554
≥1000 USD $1.51096
≥3000 USD $1.28876
Inventory: 7751
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q100
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.043 1.10mm
Height 1.0922mm
Technical
Max Supply Current 6mA
Load Capacitance 30pF
Fall Time-Max 10ns
Rise Time-Max 10ns
Operating Frequency 12.288MHz
Physical Dimension 3.2mm x 2.5mm x 1.0mm
Case Code (Imperial) 1210
Case Code (Metric) 3225
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Frequency 12.288MHz
Depth 2.5mm
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type XO (Standard)
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series AU
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 4
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
