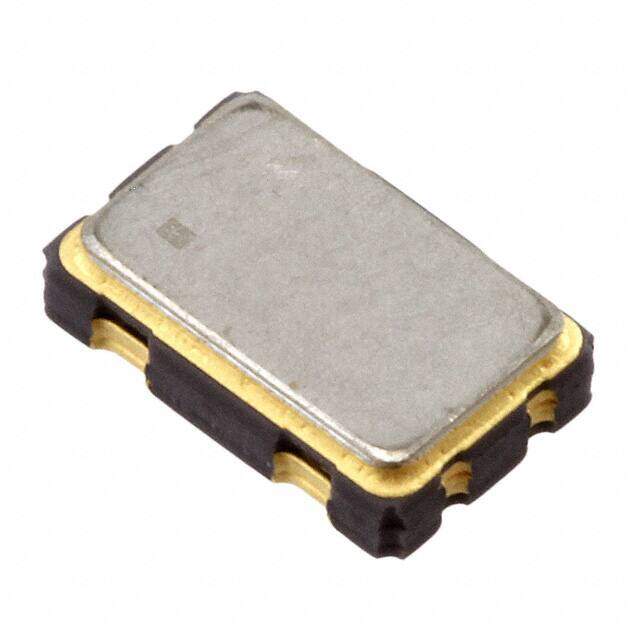

AC-54.000MBE-T image
Favorite
AC-54.000MBE-T image
Favorite

AC-54.000MBE-T

TXC Corporation
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description TXC AC-54.000MBE-TOSCILLATOR, 54MHZ, 5 X 3.2MM, CMOS
PDF
/
Inventory: 1629
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Number of Pins 4

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series AC
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type XO (Standard)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 3.3V
Frequency 54MHz
Frequency Stability ±50ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 20mA
Case Code (Metric) 5033
Case Code (Imperial) 2013
Max Supply Voltage 3.3V
Min Supply Voltage 1.8V
Load Capacitance 30pF
Max Supply Current 20mA

Dimensions

Height 1.397mm
Height Seated (Max) 0.055 1.40mm
Length 5.0038mm
Width 3.2004mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings AEC-Q100
