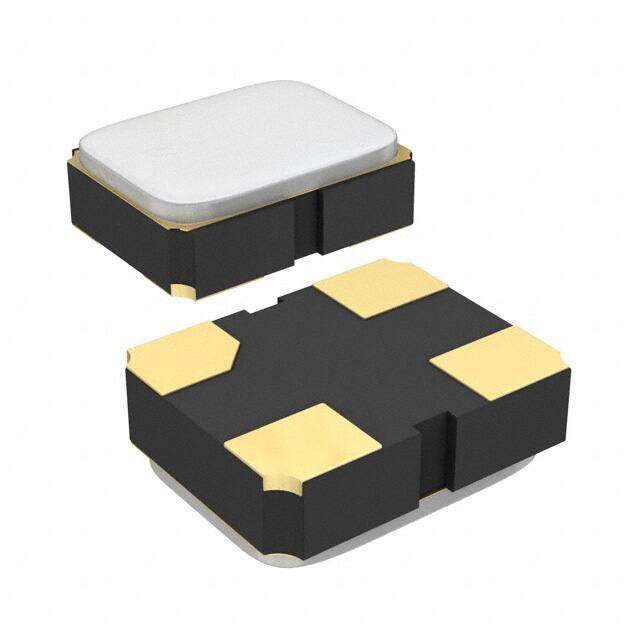

8W-11.2896MDE-T image
Favorite
8W-11.2896MDE-T image
Favorite

8W-11.2896MDE-T

TXC Corporation
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 11.2896MHZ CMOS SMD
PDF
/
Inventory: 8838
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 8W
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 1.8V
Frequency 11.2896MHz
Frequency Stability ±50ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 15mA
Max Supply Current 15mA

Dimensions

Height 889μm
Height Seated (Max) 0.035 0.90mm
Length 2.4892mm
Width 2.0066mm

Compliance

RoHS Status RoHS Compliant
