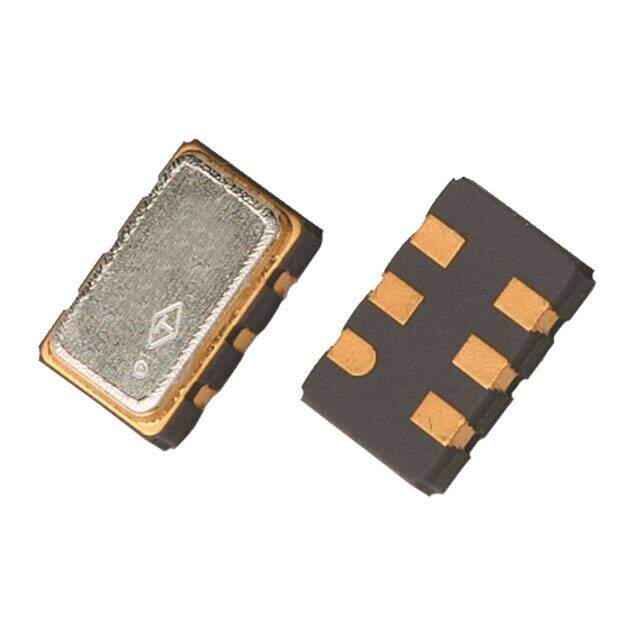

VWEUPLLANF-153.600000
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 153.6000MHZ LVPECL
PDF
/
Inventory: 6678
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.053 1.35mm
Height 1.3462mm
Technical
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Max Supply Current 100mA
Symmetry-Max 55/45%
Fall Time-Max 1ns
Rise Time-Max 1ns
Operating Frequency 153.6MHz
Physical Dimension 5.0mm x 3.2mm x 1.2mm
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±50ppm
Frequency 153.6MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series VW
Packaging Strip
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
