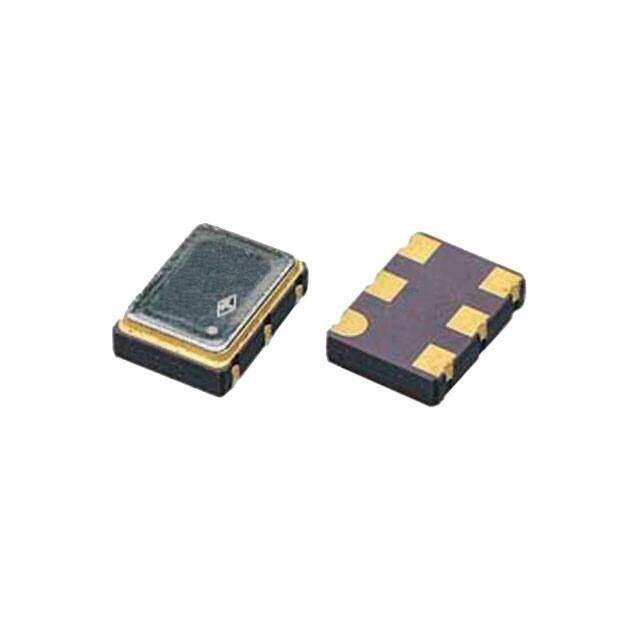

VTEMPCJANF-200.000000
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 200.0000MHZ CMOS
PDF
/
Inventory: 7459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.075 1.90mm
Height 1.905mm
Technical
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Max Supply Current 50mA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 200MHz
Physical Dimension 7.0mm x 5.0mm x 1.75mm
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Frequency 200MHz
Reach Compliance Code unknown
Supply Voltage 3.3V
Voltage - Supply 3.3V
Additional Feature TRI-STATE; ENALE/DISABLE FUNCTION
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series VT
Packaging Strip
Operating Temperature -20°C~70°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
