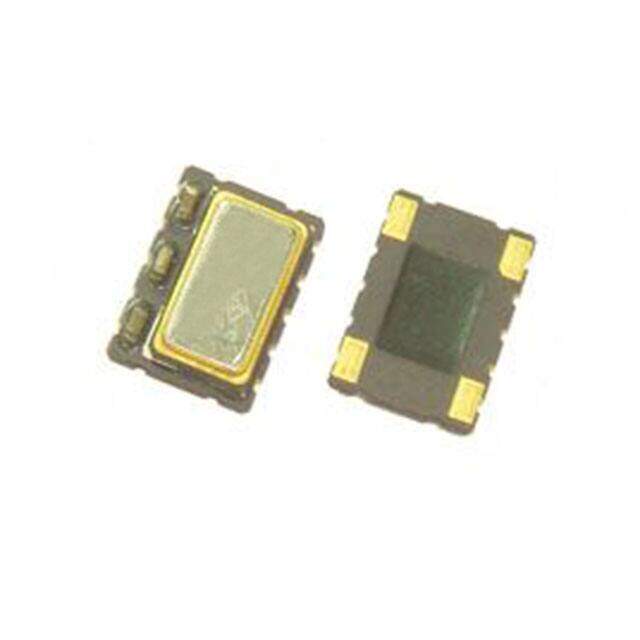

TTEAALSANF-20.000000
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead Exposed Pad
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC VCTCXO 20MHZ 3.3V CLP SW SMD
PDF
/
Buying Options
Total Price: USD $49.96
Unit Price: USD $49.963722
≥1 USD $49.963722
≥200 USD $19.936387
≥500 USD $19.269433
≥1000 USD $18.941208
Inventory: 1457
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.083 2.10mm
Height 2.1082mm
Technical
Control Voltage-Min 0.5V
Control Voltage-Max 2.5V
Max Supply Current 3.5mA
Operating Frequency 20MHz
Physical Dimension 7.0mm x 5.0mm x 1.9mm
Base Resonator Crystal
Output Clipped Sine Wave
Frequency Stability ±500ppb
Frequency 20MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Additional Feature AT CUT
Type VCTCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series TT
Packaging Strip
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
