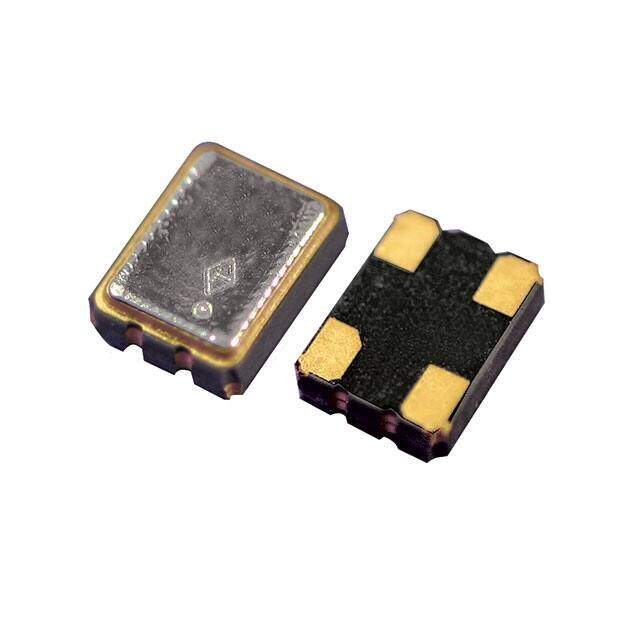

OXETGLJANF-40.000000
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 40.0000MHZ CMOS SMD
PDF
/
Inventory: 2848
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.043 1.10mm
Height 1.0922mm
Technical
Max Supply Current 15mA
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 40MHz
Physical Dimension 3.2mm x 2.5mm x 1.0mm
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Frequency 40MHz
Supply Voltage 3.3V
Voltage - Supply 2.8V~3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series OX
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
