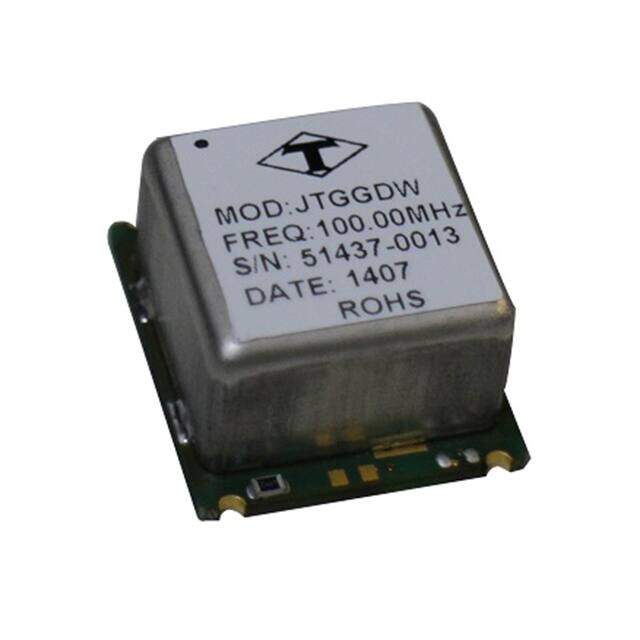

NJ-100M-6815
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead, 5 Leads
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC OCXO 100.0000MHZ SNWV
PDF
/
Buying Options
Total Price: USD $957.52
Unit Price: USD $957.518976
≥1 USD $957.518976
≥200 USD $382.056526
≥500 USD $369.289886
≥1000 USD $362.981402
Inventory: 8177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead, 5 Leads
Technical
Operating Temperature -20°C~70°C
Packaging Strip
Published 2015
Series NJ-100M-6800
Size / Dimension 1.000Lx0.870W 25.40mmx22.10mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type OCXO
Voltage - Supply 12V
Frequency 100MHz
Frequency Stability ±50ppb
Output Sine Wave
Base Resonator Crystal
Max Supply Current 380mA
Dimensions
Height 13.208mm
Height Seated (Max) 0.520 13.20mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
