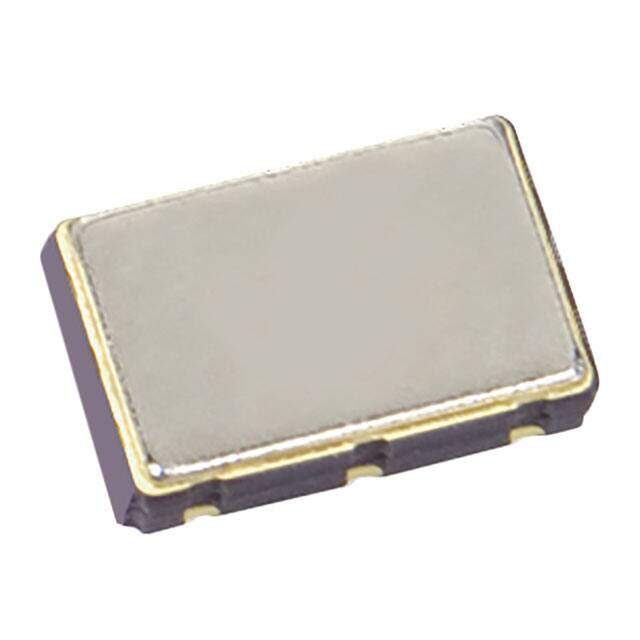

SIT9120AC-2C2-25E133.333330Y
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS CMOS ROHS3Compliant Enable/Disable Oscillator 55/45% -20C~70C 0.6ns 55mA
PDF
/
Inventory: 9033
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Power Supplies 2.5V
Symmetry-Max 55/45%
Fall Time-Max 0.6ns
Rise Time-Max 0.6ns
Operating Frequency 133.33333MHz
Physical Dimension 5.0mm x 3.2mm x 0.75mm
Qualification Status Not Qualified
Current - Supply (Max) 55mA
Base Resonator MEMS
Function Enable/Disable
Output LVDS
Frequency Stability ±25ppm
Frequency 133.33333MHz
Supply Voltage 2.5V
Voltage - Supply 2.5V
Technology CMOS
Subcategory XO, Clock
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type XO (Standard)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series SiT9120
Packaging Strip
Operating Temperature -20°C~70°C
Physical
Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
