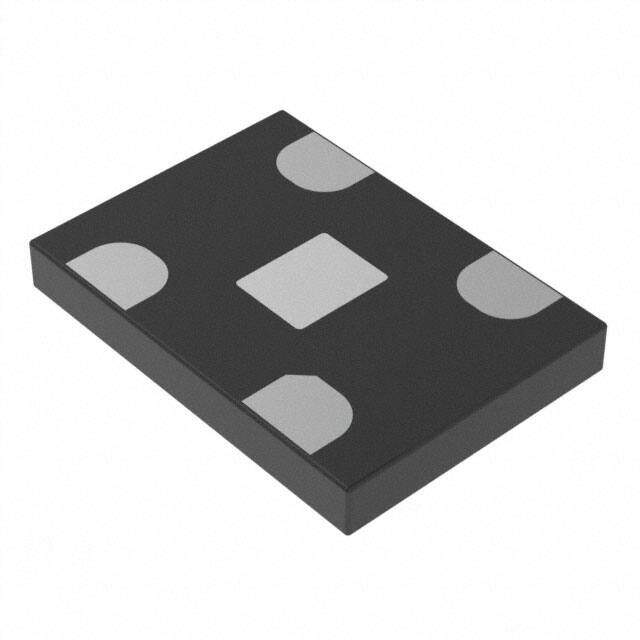

SIT9003AC-43-33DB-25.00000T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead Exposed Pad
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 25.0000MHZ LVCMOS LV
PDF
/
Inventory: 4938
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead Exposed Pad
Surface Mount YES
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series SiT9003
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature TR
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 25MHz
Frequency Stability ±50ppm
Output LVCMOS, LVTTL
Base Resonator MEMS
Current - Supply (Max) 4.1mA
Physical Dimension 7.0mm x 5.0mm x 0.9mm
Operating Frequency 25MHz
Rise Time-Max 2ns
Fall Time-Max 2ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 4.3μA
Spread Spectrum Bandwidth ±0.25% Center Spread
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
