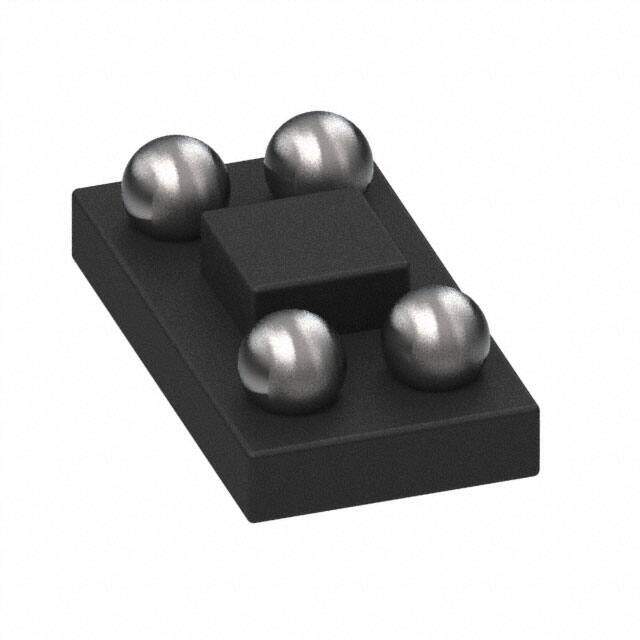

SIT8021AI-J4-18S-4.000000E
RoHS
RoHS compliant
RoHS compliantPackage 4-UFBGA, CSPBGA
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 4.0000MHZ LVCMOS SMD
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.179761
≥1 USD $1.179761
≥10 USD $1.112984
≥100 USD $1.04999
≥500 USD $0.990549
≥1000 USD $0.93449
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.024 0.60mm
Height 609.6μm
Technical
Max Supply Current 130μA
Current - Supply (Disable) (Max) 1.3μA
Symmetry-Max 55/45%
Fall Time-Max 8ns
Rise Time-Max 8ns
Operating Frequency 4MHz
Physical Dimension 1.54mm x 0.84mm x 0.6mm
Base Resonator MEMS
Function Standby (Power Down)
Output LVCMOS
Frequency Stability ±100ppm
Frequency 4MHz
Supply Voltage 1.8V
Voltage - Supply 1.8V
Additional Feature STANDBY; ENABLE/DISABLE FUNCTION; TR
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.061Lx0.033W 1.54mmx0.84mm
Series SiT8021
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-UFBGA, CSPBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
