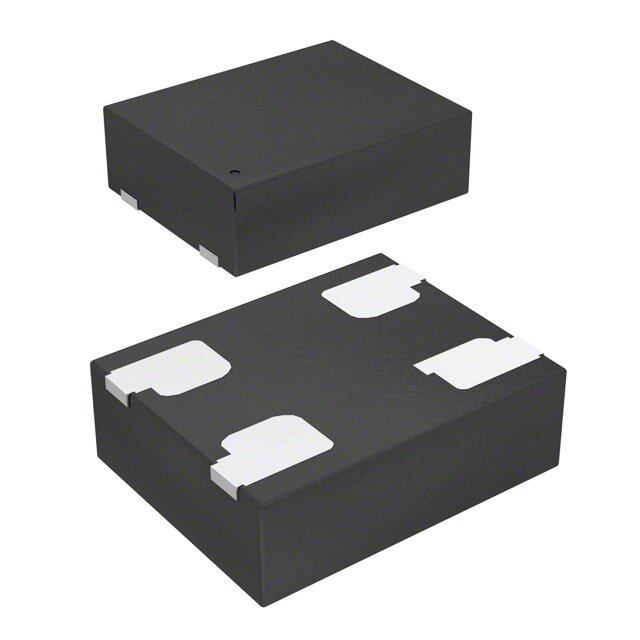

SIT8008BC-23-33E-46.977848G image
Favorite
SIT8008BC-23-33E-46.977848G image
Favorite

SIT8008BC-23-33E-46.977848G

SiTIME
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description MEMS OSC XO 46.977848MHZ H/LV-CM
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.126138
≥1 USD $1.126138
≥10 USD $1.062402
≥100 USD $1.002263
≥500 USD $0.945522
≥1000 USD $0.892012
Inventory: 1224
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -20°C~70°C
Packaging Strip
Series SiT8008B
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish NICKEL PALLADIUM GOLD
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 46.977848MHz
Frequency Stability ±50ppm
Output HCMOS, LVCMOS
Function Enable/Disable
Base Resonator MEMS
Current - Supply (Max) 4.5mA
Physical Dimension 3.2mm x 2.5mm x 0.75mm
Operating Frequency 46.977848MHz
Rise Time-Max 2ns
Fall Time-Max 2ns
Symmetry-Max 55/45%

Dimensions

Height Seated (Max) 0.031 0.80mm

Compliance

RoHS Status ROHS3 Compliant
