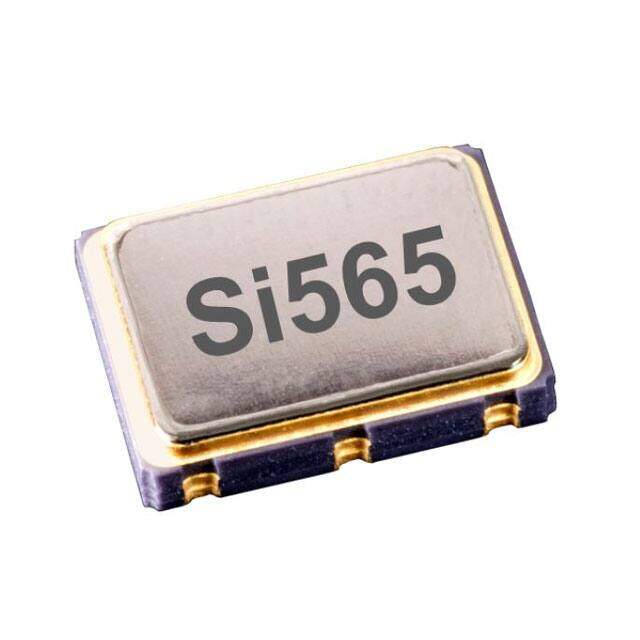

565DFA45M1500ABG image
Favorite
565DFA45M1500ABG image
Favorite

565DFA45M1500ABG

Silicon Labs
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSCILLATOR
PDF
/
Inventory: 929
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.056 1.43mm

Technical

Control Voltage-Min 0.33V
Control Voltage-Max 2.97V
Linearity 1.5%
Symmetry-Max 55/45%
Fall Time-Max 0.35ns
Rise Time-Max 0.35ns
Operating Frequency 45.15MHz
Physical Dimension 7.0mm x 5.0mm x 1.43mm
Current - Supply (Max) 167mA
Base Resonator Crystal
Function Enable/Disable
Output CML
Frequency Stability ±20ppm
Frequency 45.15MHz
Supply Voltage 3.3V
Voltage - Supply 1.8V 2.5V 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series Ultra? Si565
Packaging Strip
Operating Temperature -40°C~85°C

Physical

Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
