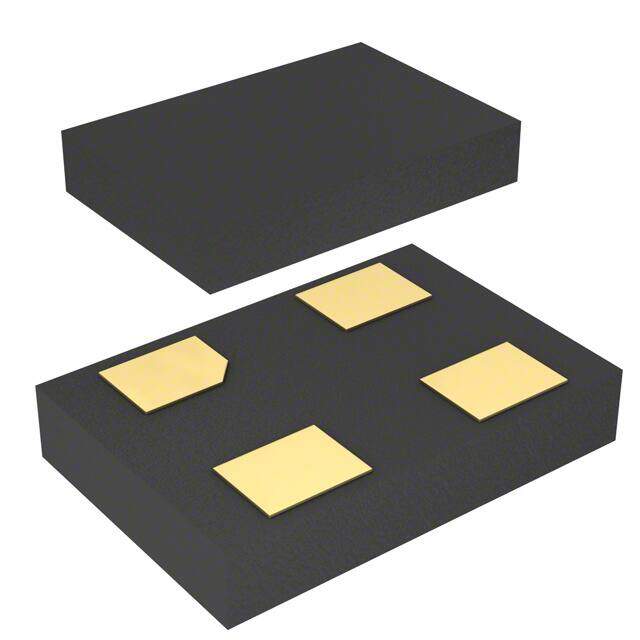

501HCA26M0000BAF
RoHS
/
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
SILICON LABS 501HCA26M0000BAF MEMS Oscillator, CMEMS, Si50x Series, 26 MHz, 20 ppm, 3.3 V, SMD, 5mm x 3.2mm, CMOS
PDF
/
Inventory: 9152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Number of Pins 4
Technical
Operating Temperature -20°C~70°C
Packaging Strip
Published 2006
Series Si501
Size / Dimension 0.157Lx0.126W 4.00mmx3.20mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Termination SMD/SMT
Type CMEMS?
Voltage - Supply 1.7V~3.6V
Frequency 26MHz
Frequency Stability ±20ppm
Output LVCMOS
Function Enable/Disable
Base Resonator MEMS
Operating Supply Voltage 3.6V
Load Capacitance 15pF
Max Supply Current 4.9mA
Frequency Tolerance 0.002%
Max Duty Cycle 55 %
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
