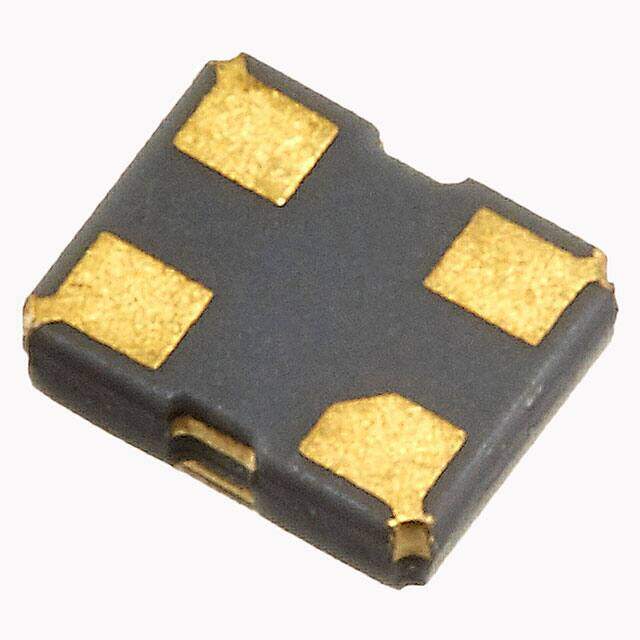

CO4910-20.000-EXT-T-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
CONNECTORS
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.1528
≥1 USD $1.1528
≥10 USD $1.10088
≥100 USD $1.075008
≥500 USD $0.921536
≥1000 USD $0.89591
Inventory: 1479
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series CO49
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish Gold (Au)
Voltage - Supply 5V
Supply Voltage 5V
Frequency 20MHz
Frequency Stability ±100ppm
Output TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 45mA
Physical Dimension 7.0mm x 5.0mm x 1.8mm
Operating Frequency 20MHz
Rise Time-Max 4ns
Fall Time-Max 4ns
Symmetry-Max 55/45%
Dimensions
Height Seated (Max) 0.071 1.80mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
