MX575ABB50M0000-TR

Microchip Technology
RoHS
RoHS RoHS compliant

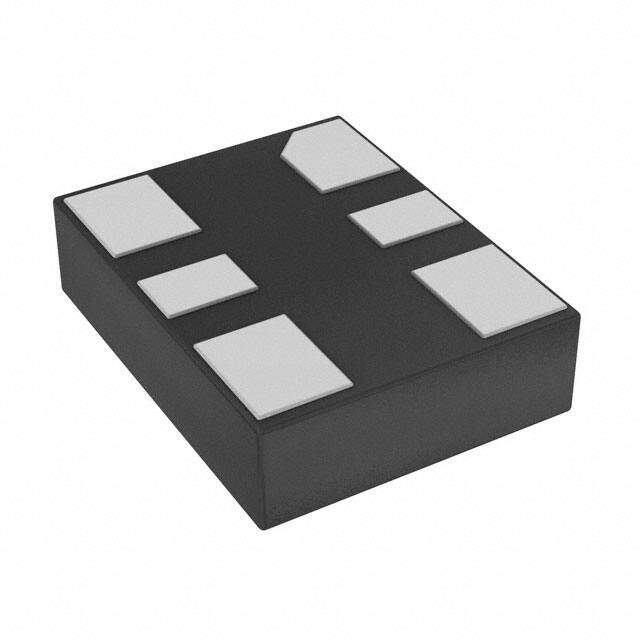

Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Crystal ROHS3Compliant Enable/Disable Active Oscillator 55/45% -40C~85C 0.4ns 90mA
PDF
/
Inventory: 6484
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series MX57
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type XO (Standard)
Terminal Finish Matte Tin (Sn)
Voltage - Supply 2.375V~3.63V
Frequency 50MHz
Frequency Stability ±50ppm
Output LVDS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 90mA
Physical Dimension 7.0mm x 5.0mm x 1.4mm
Operating Frequency 50MHz
Rise Time-Max 0.4ns
Fall Time-Max 0.4ns
Symmetry-Max 55/45%

Dimensions

Height Seated (Max) 0.055 1.40mm

Compliance

RoHS Status ROHS3 Compliant
