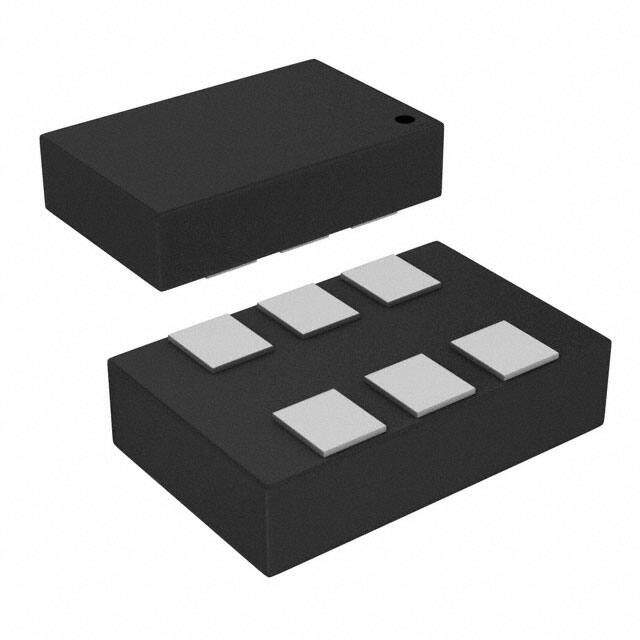

MX553BBA312M500-TR image
Favorite
MX553BBA312M500-TR image
Favorite

MX553BBA312M500-TR

Microchip Technology
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 312.5000MHZ SMD
PDF
/
Inventory: 9374
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series MX55
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type XO (Standard)
Terminal Finish Matte Tin (Sn)
Voltage - Supply 2.375V~3.63V
Frequency 312.5MHz
Frequency Stability ±50ppm
Function Enable/Disable
Base Resonator Crystal
Physical Dimension 5.0mm x 3.2mm x 1.4mm
Operating Frequency 312.5MHz
Rise Time-Max 0.35ns
Fall Time-Max 0.35ns
Symmetry-Max 55/45%
Max Supply Current 120mA
Output Load 50 OHM

Dimensions

Height 1.397mm
Height Seated (Max) 0.055 1.40mm

Compliance

RoHS Status ROHS3 Compliant
