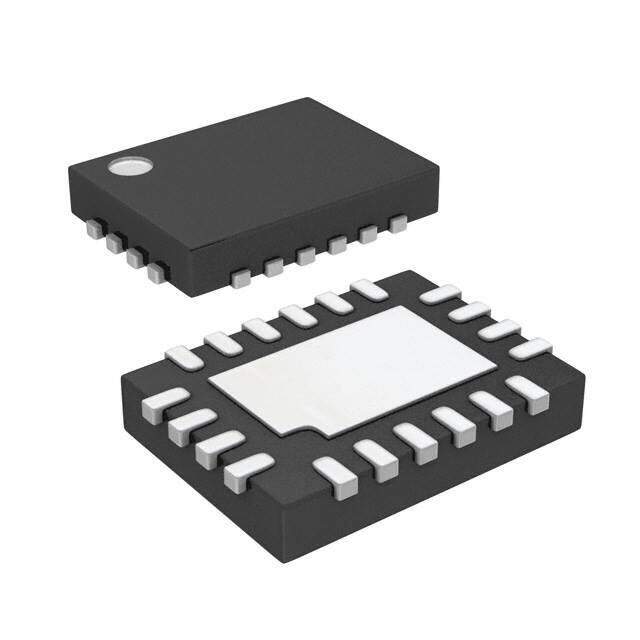

DSC557-054444KI1
RoHS
RoHS compliant
RoHS compliantPackage 20-VFQFN Exposed Pad
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 100.0000MHZ HCSL SMD
PDF
/
Buying Options
Total Price: USD $5.13
Unit Price: USD $5.131042
≥1 USD $5.131042
≥10 USD $4.840597
≥100 USD $4.566607
≥500 USD $4.30812
≥1000 USD $4.064261
Inventory: 1733
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2013
Series DSC557-05
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Type XO (Standard)
Technology CMOS
Voltage - Supply 2.25V~3.6V
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 100MHz
Frequency Stability ±50ppm
Output HCSL
JESD-30 Code R-XQCC-N20
Function Enable/Disable
Base Resonator MEMS
Current - Supply (Max) 120mA Typ
Current - Supply (Disable) (Max) 46mA
Max Supply Current 120mA
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Length 5mm
Width 3.2mm
Compliance
RoHS Status ROHS3 Compliant
