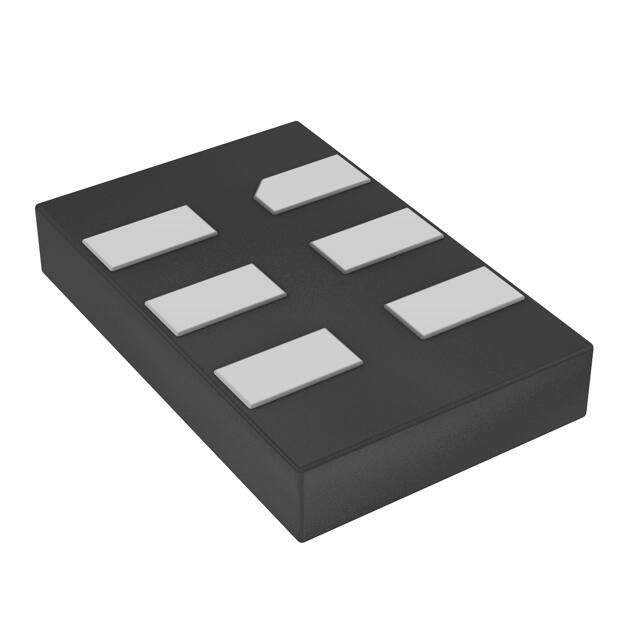

DSC1124BE1-125.0000 image
Favorite
DSC1124BE1-125.0000 image
Favorite

DSC1124BE1-125.0000

Microchip Technology
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description MEMS OSC XO 125.0000MHZ HCSL SMD
PDF
/
Inventory: 5790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q100
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.035 0.90mm
Height 889μm

Technical

Max Supply Current 42mA
Current - Supply (Disable) (Max) 22mA
Symmetry-Max 52/48%
Fall Time-Max 0.4ns
Rise Time-Max 0.4ns
Operating Frequency 125MHz
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Base Resonator MEMS
Function Enable/Disable
Output HCSL
Frequency Stability ±50ppm
Frequency 125MHz
Voltage - Supply 2.25V~3.6V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series DSC1124
Packaging Tube
Operating Temperature -20°C~70°C

Physical

Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
