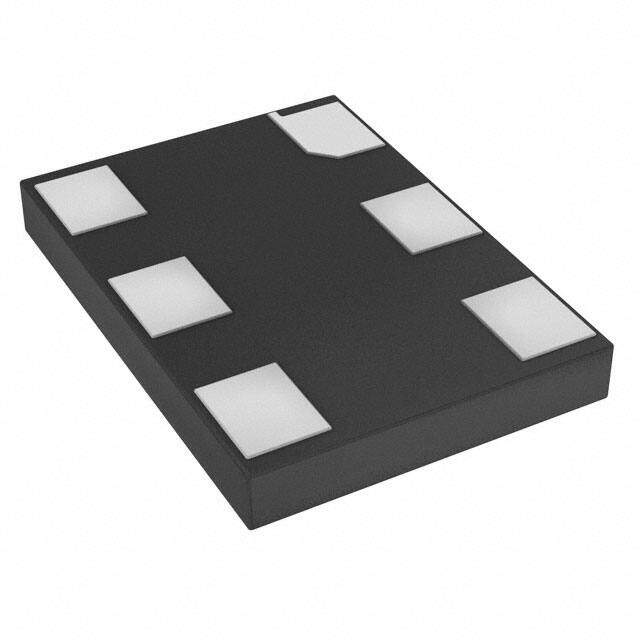

DSC1122NI1-078.1250
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC MEMS 78.1250MHZ LVPECL SMD
PDF
/
Inventory: 8288
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series DSC1122
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Part Status Active
Max Supply Current 58mA
Current - Supply (Disable) (Max) 22mA
Current - Supply (Max) 58mA
Base Resonator MEMS
Function Enable/Disable
Output LVPECL
Frequency Stability ±50ppm
Frequency 78.125MHz
Voltage - Supply 2.25V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type XO (Standard)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.0038mm
Length 7.0104mm
Height Seated (Max) 0.035 0.90mm
Height 889μm
