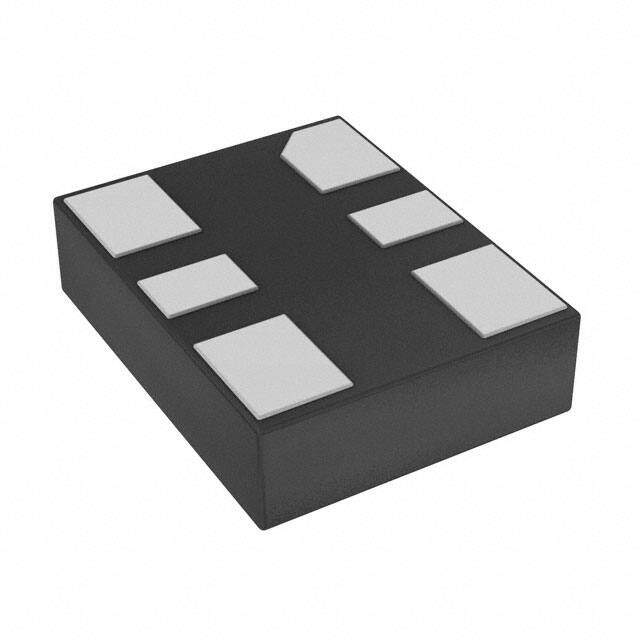

DSC1101CI1-025.0000
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 25.0000MHZ CMOS SMD
PDF
/
Inventory: 3314
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 35mA
Current - Supply (Disable) (Max) 95μA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 25MHz
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Frequency Stability ±50ppm
Frequency 25MHz
Voltage - Supply 2.25V~3.6V
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type XO (Standard)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series DSC1101
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
