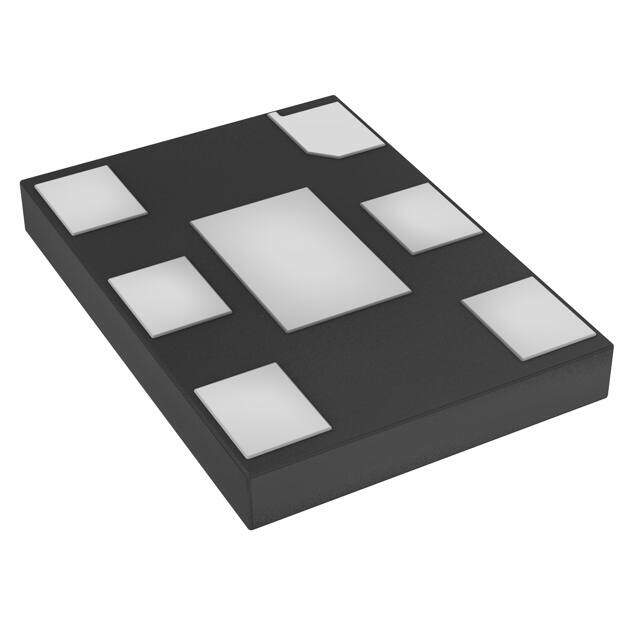

DSC1101AE5-040.6080T
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead Exposed Pad
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 40.6080MHZ CMOS SMD
PDF
/
Inventory: 3510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead Exposed Pad
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series DSC1101
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 2.25V~3.6V
Frequency 40.608MHz
Frequency Stability ±10ppm
Output CMOS
Function Standby (Power Down)
Base Resonator MEMS
Current - Supply (Max) 35mA
Max Supply Current 35mA
Current - Supply (Disable) (Max) 95μA
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.0038mm
Length 7.0104mm
Height Seated (Max) 0.035 0.90mm
Height 889μm
