DSC1033CI1-080.0000
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 80.0000MHZ CMOS SMD
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.269138
≥1 USD $1.269138
≥10 USD $1.197298
≥100 USD $1.129536
≥500 USD $1.065596
≥1000 USD $1.005277
Inventory: 1517
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 5mA
Current - Supply (Disable) (Max) 1μA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 80MHz
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Current - Supply (Max) 5mA Typ
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Frequency Stability ±50ppm
Frequency 80MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series DSC1033, PureSilicon?
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks

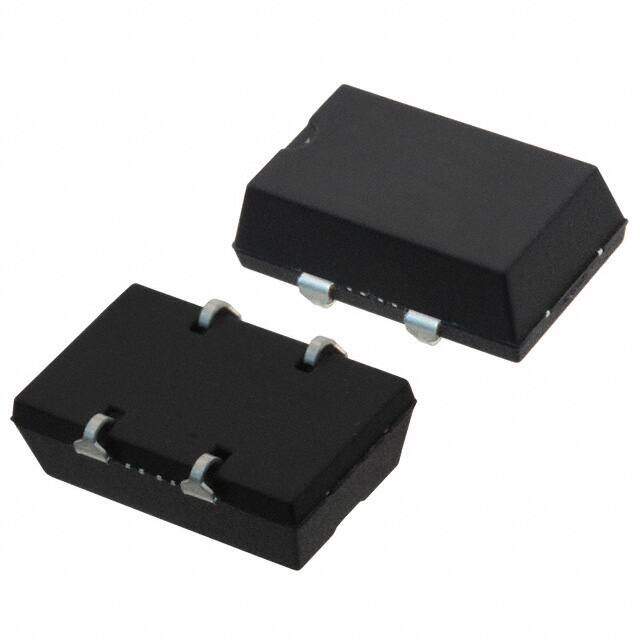

Alternative Model
