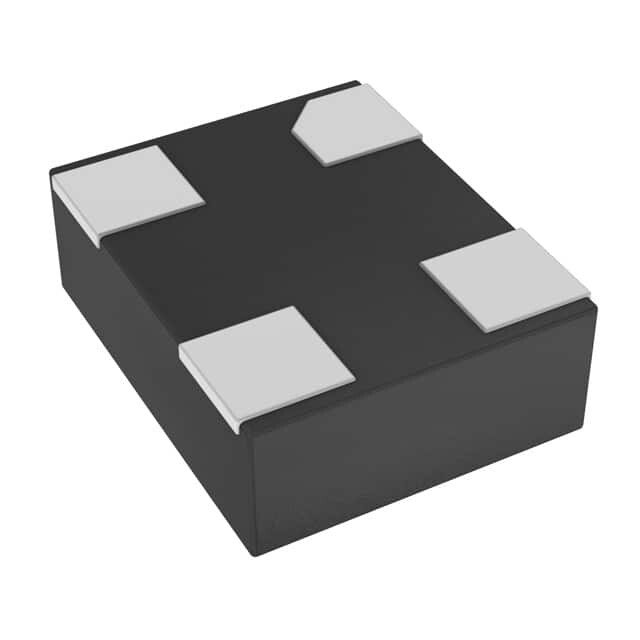

DSC1001DL2-001.8432T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Standard Clock Oscillators -40C - 105C 25 ppm 001.8432MHz
PDF
/
Inventory: 9297
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q100
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 6.3mA
Load Capacitance 15pF
Current - Supply (Disable) (Max) 15μA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 1.8432MHz
Physical Dimension 2.5mm x 2.0mm x 0.85mm
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Frequency Stability ±25ppm
Frequency 1.8432MHz
Supply Voltage 3.3V
Voltage - Supply 1.8V~3.3V
Terminal Finish Matte Tin (Sn)
Type XO (Standard)
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series DSC1001
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
