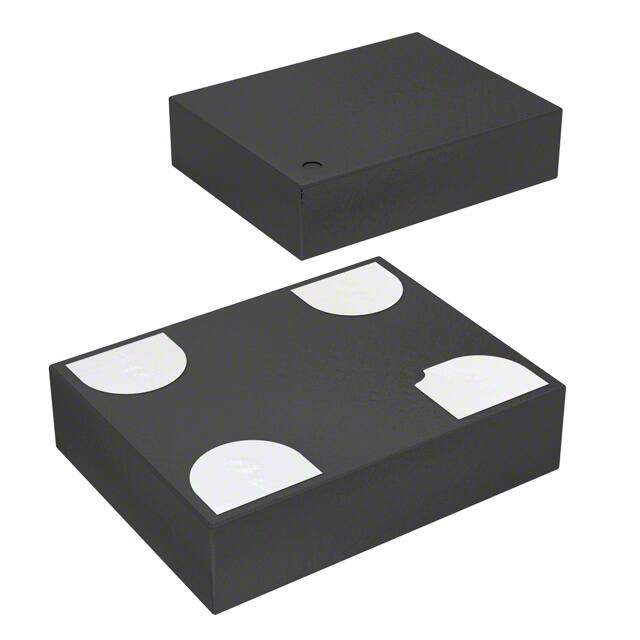

DSC1001CE5-032.2123

Microchip Technology
RoHS
RoHS RoHS compliant
Package 4-VDFN
Category Crystals, Oscillators, Resonators / Oscillators
Description MEMS RoHS Compliant Standby (Power Down) Active crystal oscillator 55/45% -20C~70C 2ns 10.5mA
PDF
/
Inventory: 3415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 4-VDFN
Surface Mount YES

Technical

Operating Temperature -20°C~70°C
Packaging Tube
Series DSC1001
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish Matte Tin (Sn)
Voltage - Supply 1.7V~3.6V
Supply Voltage 3.3V
Reach Compliance Code compliant
Frequency 32.2123MHz
Frequency Stability ±10ppm
Output CMOS
Function Standby (Power Down)
Base Resonator MEMS
Current - Supply (Max) 10.5mA
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Operating Frequency 32.2123MHz
Rise Time-Max 2ns
Fall Time-Max 2ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 15μA

Dimensions

Height Seated (Max) 0.035 0.90mm

Compliance

RoHS Status RoHS Compliant
Ratings AEC-Q100
